Synthesis, physicochemical, XRD/HSA-interactions, heteromeric [CH···Cl/CH···πPh] synthon, DFT, thermal and 1BNA-DNA molecular coupling of cis-Ni(S, N)2 complex using hydrazine carbodithioate schiff base

BMC Chemistry volume 19, Article number: 108 (2025) Cite this article

Abstract

The reaction of bidentate-S, N-thione Schiff base ligand, Phenyl (E)-2-(1-phenylethylidene)-hydrazine-1-carbodithioate (PPEHCDT) with NiCl2.3H2O produced a neutral NiII(S, N)2 complex with cis form as kinetic favor isomer. Various physicochemical techniques, including EDX, FAB-MS, UV-Vis, IR, CHN, and XRD-crystal analysis, were employed to characterize the desired complex. These techniques provided evidence supporting the coordination of the ligand with the Ni-center, as indicated by the neutral cis-Ni(L)2 formula. The XRD-results revealed a cis-isomer as anionic S-thiol and bis-bidentate-N-azomethine, as well as a slightly distorted square planar neutral cis-Ni(PPEHCDT)2 complex. In contrast, the DFT simulation supported a distorted tetrahedral as favor geometry, despite the fact that the XRD/DFT structural parameters results agreed. Moreover, the Molecular Electrostatic Potential (MEP) together with the Hirshfeld Surface Analysis (HSA) confirmed the XRD seen in appearance of the Heteromeric sub-synthons via C-H….πPh and C-H···S interactions. Moreover, the TG/DTG technique exhibited a high level of stability (∼ 250 °C) and a two-step thermal degradation process for the prepared cis-Ni(PPEHCDT)2 complex. Furthermore, it has been observed that the molecular docking of 1BNA-DNA with the free ligand is superior to that of the cis-Ni(PPEHCDT)2 complex due to the presence of two H-bonds with a larger binding energy as opposed to a single H-bond with a lower binding energy.

Peer Review reports

Introduction

The transition metal ion nitrogen-sulfur bi-chelated ligand complexes that were accomplished from dithiocarbazic acid and S-alkyl thioesters were recently studied for their structural uniqueness and applications [1,2,3,4]. The mode of coordination of such ligands together with their thiol/thione isomerization pronounced their biological activities against cancer cells, viruses, microbes, fungal, and bacterial [2,3,4]. Moreover, the multifaceted industrial chemistry of ligand-complexes results in the participation of such new materials in non-biological and biological catalysis approaches [5]. Furthermore, the coordination of several types of hydrazonedithioate (as S and N ligands) is an essential piece of research to develop new complexes with industrial molecular magnetism, semiconducting behavior, electrochemical, and optoelectronic properties [6].

The transition metal ions [M(S, N)2]n complexes using hydrazone dithioate ligands established several metal centers with different oxidation numbers of Fe(II&III), Mn(II, IV & VI), Co(III&II), Cu(I&II) and Ni(II), engage in the electrochemical oxidation of water [7,8,9,10]. Ni(S, N)2 complexes were found to be the best catalysts among the others for the oxidation of water [11,12,13,14,15,16]. Therefore, the oxidation catalytic properties of such complexes, especially Ni(II) have been developed industrially for oxidation of enantioselective sulfides, alcohols, and alkenes [17,18,19,20]. In the natural biological system, Ni(II) with N, S containing bi-, tri-, or multi-chelated ligand complexes were used as a model for Ni(II)-enzymes like Ni-containing superoxide dismutase and bi-functional acetyl–CoA/carbon monoxide dehydrogenase synthase [21, 22].

In light of the growing interest in dithiocarbazic acid ligands and their metal complexes [1, 23,24,25], the primary objective of this study was to ascertain the molecular structure of the cis-Ni(PPEHCDT)2 complex during its interaction with the S-PPEHDC ligands. This study aimed to investigate the thiol-thione coordination mode behavior of the desired tridentate hydrazinecarbodithioate Schiff base via various physicochemical measurements, with particular emphasis on crystallographic XRD-one. The DFT, XRD, thermal behavior, HSA, MEP, MAC/NPA, DOS, HOMO/LUMO, and physicochemical properties together with their 1BNA-DNA docking behaviors were investigated.

Experimental

Chemicals and measurements

Chemicals and solvents fine are available from Fluka. In order to measure the infrared vibrations in the 4000–200 cm− 1 wavenumber range, the PerkinElmer Spectrum 1000 FT-IR Spectrometer was used. The UV–Vis. data was achieved via TU-1901 double-beam spectrophotometer. Using a 711 A (8 kV) Finnigan, FAB-MS data were gathered. An Elementar Analyzer Varrio EL was used to get the CHN analysis.

Synthesis of Ni(II) complex

The PPEHCDT ligand and its Ni-complex were designed and synthesized in quantitative yield using a recent synthesis approach [1], based on our knowledge of hydrazinecarbodithioate polychelate ligands, which can act as tridentate or bidentate ligands, and insights from relevant literature reviews. It is noteworthy to notice that past publications have documented the utilization of distinct nickel transition components in the synthesis of analogous complexes [1, 23,24,25]. The desired complex was prepared by adding a hot solution of BPEHCDT ligand (0.31 g, 1.0 mmol) in 20 mL of ethanol to a solution of NiCl2.3H2O (0.24 g, 1 mmol) in ethanol (30 mL). The mixture was stirred for an hour. The solution’s volume was then reduced to half and refrigerated in a refrigerator for eight hours. The green precipitate was filtered and thoroughly washed with methanol and n-hexane, respectively. M.p 223 °C, yield in 76%. Anal. Calcd for C30H26N4NiS4: C, 57.24; H, 4.16; and N, 8.90. Found C, 57.21; H, 4.27; N, 8.73. FAB-MS: [M+] = 629.3 m/z. Selected IR data (cm− 1): v(C-H, Ph) 3080–3020 cm− 1, v(C-H, alkyl) 2920–2890 cm− 1, v(2 C = N) 1570 b, v(N-N) 1118 s, v(CSS) 825 cm− 1, v(Ni-N) 622 cm-1, cm− 1, v(Ni-S) 502 cm-1, cm− 1. UV–vis. Ligand bands like π→π* at 238 nm, π →n, at 302, n→π* at 360, 397,238, 290, and d→d (Ni2+) band at 420 nm.

Computation and XRD-crystal

HSA was achieved via CrystalExplorer platform, version 17 [26]. Gaussian W09 software was utilized for all the DFT stimulations [27]. The LANL2DZ was used as a basis set for Ni(II) the heavy atoms, while DFT 6-311G(d, p) was used for the other atoms. The docking studies were performed via Autodock 4.2 software, 2016 [28]. The 3D structure of the used DNA was obtained from the Protein Data Bank (PDB) via the 1bna code; the structure is readily accessible free on the PDB website [29]. The resolution of the 1BNA DNA structure, determined by SC-XRD, is 1.90 Å; the structure was obtained by crystallizing the protein under a precise method. The 1BNA-DNA structure is a distinguished B-form DNA dodecamer and was one of the first high-resolution DNA structures revealed using X-ray crystallography [30].

Single-crystal XRD data was collected on a Bruker AXS Smart Apex CCD diffractometer with graphite monochromatic Mo-Kα radiation of λ = 0.071073 Å at a temperature of 130 ± 2 K, using the scanning technique to a maximum of 137 ± 2 K. The structure was solved by direct method employing SIR-92 and full-matrix least squares refinement [31]. All nonhydrogen atoms were anisotropically refined through SHELXL [32]. Hydrogen atoms were located geometrically and were refined isotropically. Table 1 reports the crystal data.

Table 1 cis-Ni(PPEHCDT)2 complex structure refinement data
Full size table

Results and discussion

Preparation, CHN-EA, MS, EDX and IR of cis-Ni(PPEHDC)2 complex

To obtain the required cis-Ni(PPEHDC)2 complex, the PPEHDC ligand was treated with NiCl2.3H2O in a hot EtOH solution at room temperature, as shown in Scheme 1. The cis-Ni(PPEHDC)2 complex was collected as a brownish powder with a good yield of 78%. The complex is slightly soluble in methanol, chlorinated solvents, and hot water but never in n-hexane. The cis-Ni(PPEHDC)2 molecular structure was examined using various spectral techniques, including IR, FAB-MS, CHN-EA, UV-vis, EDX, TG/DTG, and XRD-crystal. The XRD result showed the PPEHDC ligand as S (thiol) and N (azometh) and not with thione form ligand mode of coordination.

Furthermore, it was observed that the cis-isomer of the neutral Ni(PPEHDC)2 complex was exclusively obtained as the kinetically favored isomer. Conversely, there was no indication of the formation of the trans-Ni(PPEHDC)2 complex isomer, which is thermodynamically favored. This observation has been substantiated through XRD-crystal analysis.

Scheme 1
figure 1

Cis-Ni(PPEHDC)2 complex synthesis

Full size image

Cis-Ni(PPEHDC)2 complex formula weight was confirmed by FAB-MS, [M + 1+] = 629.3 m/z (628.2 m/z theoretical). The CHN-elemental analysis aligns with the molecular formula of the complex C30H26N4NiS4. Moreover, EDX-analysis confirmed the purity and the atomic continent, as only energy peaks belong to C, N, S and Ni were detected, as shown in Fig. 1a.

Fig. 1
figure 1

(a) EDX spectra, (b) IR, (c) DFT and (d) DFT/Exp.-IR correlation diagram

Full size image

The solid-state FT-IR of cis-Ni(PPEHDC)2 complex was recorded, as seen in Fig. 1b. Several IR stretching vibration bands were observed; the main groups CPh-H, Calkyl-H, C = N◊Ni, C = N, N-N, CS2, N◊Ni and S◊Ni stretching vibrations were sited to 3080 − 3020, 2920 − 2890, 1575, 1570, 1118, 825, 622, 502 cm− 1, respectively. The same functional group stretching vibrations were observed by DFT-IR with slight shifts in their wavenumber values, as seen in Fig. 1c. Furthermore, the DFT and experimental IR wavenumber values exhibit a high level of agreement, as evidenced by a graphical correlation of 0.997, as seen in Fig. 1d.

X-Ray and DFT computations

The DFT-optimized and ORTEP diagrams of cis-Ni(PPEHDC)2 complex structures and their parameters have been illustrated in Fig. 2; Table 2. C32H30N4NiS4 is Monoclinic in crystal system, C2/c with Z = 4 per cell. The two PPEHDC ligands bonded to Ni(II) center via S and N provided by 2 anionic via S- and 2 neutral N-groups to form the neutral cis-Ni(PPEHDC)2 complex with two five-hetero-metal-membered center cis-Ni(N, S)2 rings (Fig. 2b). The bond and angle values of the Ni(II)-complex are in high agreement with previously similar structures [1, 23, 24]. The Ni(II) center geometry was solved as a distorted square planar with τ = 30.2o (Fig. 2b). The DFT optimization result of the cis-Ni(PPEHDC)2 complex revealed that the square planar geometry is more favourable than the tetrahedron geometry. This observation was not surprising since the DFT theory neglected any internal interactions (gaseous state). Hence, it is possible through DFT to observe that the tetrahedral structure around metal center is a preferred isomer over the square planar geometry because it has a lower steric hindrance that minimizes the internal repulsion. As the distorted square planar around the Ni(II) center has been confirmed experimentally by XRD-crystal, it can be said in this manuscript that the DFT-theory contradicted the results of XRD in judging the final geometry around the metal central atom, but it agreed in judging the other structural parameters.

Fig. 2
figure 2

(a) ORTEP diagram, (b) distorted square planar, (c) DFT optimization, and (d) DFT-tetrahedral structure of cis-Ni(PPEHDC)2 complex

Full size image
Table 2 Designated DFT/XRD bonds and angles lengths
Full size table

The DFT-optimized angles and bond lengths were consistent with experimental XRD data, as shown in Fig. 3. Figure 3a shows acceptable levels of DFT and XRD in terms of angles and bond lengths. Bond lengths were in great agreement, as shown in Fig. 3a, with a graphical correlation R2 = 0.972 (Fig. 3b). Even two distinct geometries were proposed: the tetrahedral structure was seen by DFT and the square planar structure was validated by XRD; their angles also exhibited excellent agreement, as shown in Fig. 3c, with graphical correlation R2 = 0.9798 (Fig. 3d).

Fig. 3
figure 3

(a) XRD/DFT-bond lengths histogram, (b) XRD/DFT-bond lengths graphical correlation, (c) XRD/DFT-angles histogram, and (d) DFT/Exp. angles correlation diagram

Full size image

Heteromeric [CH···Cl/CH···πPh] synthon and HSA investigation

Typically, the occurrence of two primary large synthons of 2D-S24-type cyclic bonding is uncommon (Fig. 4a). This is because each synthon is composed of a triple-side sub-synthon, specifically 2S11 and 1S10, which bind through two short contacts: Calkyl-H…S with a radius of 2.902 µ and Cph-H…Ph with a radius of 2.974 γ (Fig. 4b). The non-classical shorter hydrogen bonds, specifically H…S and H…Ph, exhibit a two-dimensional chain formation, as depicted in Fig. 4b. Furthermore, the cis-Ni(PPEHDC)2 lattice exhibited a notable increase in crystalline matrix stability as well as enhanced optical and electrical characteristics due to the presence of eight interactions per two synthons [33].

Fig. 4
figure 4

(a) 2D-S24 triple sub-synthon, and (b) 2S11 + S10 sub-synthons including H….S and H···πPh interactions

Full size image

To confirm the packing result, the HSA of cis-Ni(PPEHDC)2 was performed in between − 0.632 and 1.876 a.u. using the CIF crystallographic data [34,35,36,37,38,39,40,41,42]. The HSA and 2D-FP collected results are illustrated in Fig. 5. The existence of S and N heteroatoms together with π of the aromatic rings, in addition to several polar hydrogens, enhanced the formation of eight red-dots, including the presence of short interactions like H….S and H···πPh as seen in dorm (Fig. 5a). Moreover, 2D-FP intermolecular H-to-atom ratios are displayed in Fig. 5b. It was found that the H···H (51.5%) interaction has the highest ratio among all interactions, while the H···Ni reflected a 0.1% ratio (Fig. 5c). The 2D-FP ratio analysis is illustrated in the following order: H….H > C….H > S…H> (N….H, Ni….H, 0%).

Fig. 5
figure 5

(a) dnorm, (b) shape index, and (c) 2D-FP over the cis-Ni(PPEHDC)2 complex surface

Full size image

MEP, and MAC/NPA

MEP map of cis-Ni(PPEHDC)2 complex is computed to explore the binding properties of the complex. The potential increased, ranging from blue, green, yellow, orange, and red, reflecting the degree of the electronic density of each atom. The MEP results indicated that the etheric S and coordinated S atoms display the highest e-rich/nucleophilic sites (red color). Meanwhile, the e-poor/electrophilic spots (blue) are highly seated on the phenyl and methyl protons. Usually, aromatic rings are rich with \(\:\pi\:\) electrons; they are distinguished as yellow areas (Fig. 6). Non-classical C-H···πPh and C-H….S H-bond interactions can be computed using MEP theory that is consistent with the HSA and XRD outcome. The atomic charge of our molecule surface behavior MAC and NPA charge distribution in cis-Ni(PPEHDC)2 complex were calculated and displayed as seen in Fig. 6. In general, the NPA reflected the Ph charges with higher values compared to MAC results. All atomic charges of each atom on the surface of the core of the molecule were collected in Table 3. The comparative study of both the models, MAC and NPA, is accepted since a high graphical correlation is detected at 0.8921, as seen in Fig. 6d.

Fig. 6
figure 6

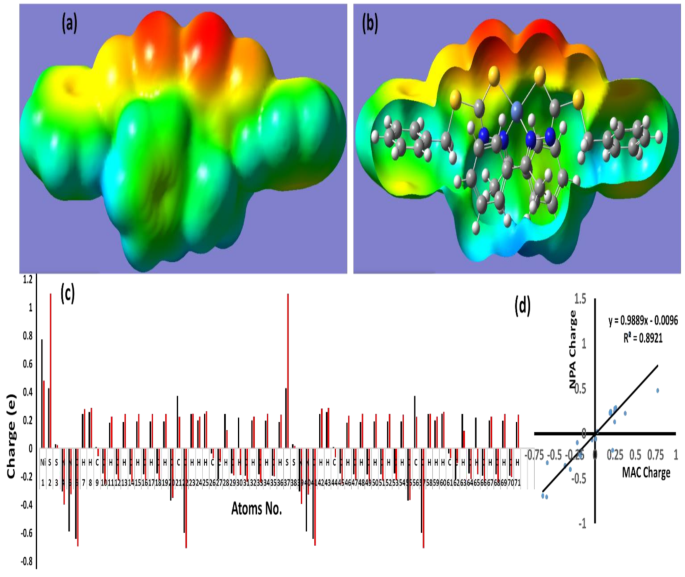

(a) MEP, (b) MAC/NPA, (c) MAC vs. NPA, and (d) MAC/NPA correlation of cis-Ni(PPEHDC)2 complex

Full size image
Table 3 NPA/MAC charge population
Full size table

HOMO/LUMO and DOS

The HOMO and LUMO shapes and energy levels provide input about stability, the relationship orbitals, and the general chemical and structural properties of the prepared new compounds. In the HOMO, the main electron density focused around the Ni(II) and the core atoms of cis-Ni(PPEHDC)2; meanwhile, in LUMO focus only around the core atoms and not on Ni(II) center. Both HOMO and LUMO defocused the terminal phenyls. Moreover, the ELUMO, EHOMO, and ΔE were calculated to be -0.0833, -0.1921, and 0.1088 a.u (2.9598 eV), respectively, as shown in Fig. 7a. In order to verify the HOMO and LUMO energy values, they were calculated using another model, like the Density of State (DOS). The net energy resulted in by DOS ΔEDOS was found to be consistent with ΔEHOMO/LUMO with very close 2.988 eV, as seen in Fig. 7b.

Fig. 7
figure 7

(a) HOMO and LUMO shapes and energy and (b) DOS diagrams of cis-Ni(PPEHDC)2 complex

Full size image

TG/DTG analysis

The thermal behavior of the desired cis-Ni(PPEHDC)2 complex has been performed in an ambient conditions using a heat rate of 10 °C/min via TG/DTG, as shown in Fig. 8. Figure 8 shows the complex exhibitin high thermal stability. The stability of the complex up to 250 °C can be attributed to the absence of uncoordinated or coordinated water molecules on the nickel atom. This is evidenced by the absence of any weight loss in the complex between 50 and 160 °C, as depicted in Fig. 8a. This finding is consistent with both the IR and XRD results. The desired complex underwent two primary decay processes. The initial step exhibited the most pronounced mass decay within the temperature range of 250–300 °C, with TDTG = 280 °C (Fig. 8) and mass of 39.6%. This loss can be mainly attributed to the de-structured of one piece of the PPEHDC ligand to form cis-Ni(PPEHDC)2 complex. Meanwhile, the second step involved a wide range of temperatures from 420 to 510 °C, with TDTG = 480 °C and mass loss of 40.5%.This loss can be attributed to the de-structuring of the second ligand component, which occurred simultaneously with the reaction with atmospheric O2 to produce nickel oxide as a final product with ∼ 19.3% yield [44].

Fig. 8
figure 8

TGA of the cis-Ni(PPEHDC)2 complex

Full size image

Molecular docking studies

In the field of structural drug design (SDD), understanding the binding of medications to DNA or enzymes can be accomplished by the most successful theoretical molecular coupling method, which distinguished as an outstanding methodology [43,44,45]. The methodology in this section focuses on the interaction between the free PPEHCDT ligand and its cis-Ni(PPEHCDT)2 complex with 1BNA-DNA helices. This algorithm will analyze different positions, orientations, and types of interaction between PPEHCDT or cis-Ni(PPEHCDT)2 and DNA using Autodock 4.2 [28] output virtualized via PyMOL [46] software. Its goal is to identify the configuration that offers the greatest fit to assess the experimental better future chemotherapy. Table 4; Fig. 9 show the final docked pictures and the binding energy estimates for the ligand and its complexes. The PPEHCDT docked with 1BNA resulted like the cisplatin binding mode; mimic a good docking by cross-linking of the 1BNA both double helix [42] with a minor grove site interaction (Fig. 9a) via two short hydrogen bonds. The first was via NH of hydrazine carbodithioate and cytosine (DC23:O4) bases of DNA with 1.985 Å length, and the second hydrogen bond was through sulfur of dithioate and guanine (DG4:H22) bases of DNA with 2.323 Å length (Fig. 9b). These two H-bond result the binding energy with a very good value of -8.84 kcal/mol. Other weak binding interactions as Ph π: π, S-π and VdW, were also recorded, as seen in Fig. 9b. A dramatical change in the bonding mode was obtained when the cis-Ni(PPEHCDT)2 was introduced instead of the free ligand. The complex binds the 1BNA to the major grove instead of the minor grove position (Fig. 9c) [44, 45]. Only one hydrogen bond via sulfur of dithioate and adenine (DA18:H62) with 2.234 Å length has been detected (Fig. 9d); moreover, a lower binding energy of -6.34 kcal/mol has been recorded as seen in Table 4. Additionally, inhibition constant (IC) value of cis-Ni(PPEHCDT)2 complex is lower than that of the free ligand which reflects the complex as better 1BNA binder (Table 4). However, they usually used the binding energy values in the final judgment on the ability of compounds to bind with DNA better, since it is a more reliable parameter. Conversely, the ligand efficiency values aligned with the bonding energy values, indicating that the free PPEHCDT ligand is a more effective DNA-binder compared to its cis-Ni(PPEHCDT)2 complex, as PPEHCDT exhibited a higher negative B.E value (Table 4).

Table 4 Docking data of both the PPEHCDT and its cis-Ni(PPEHCDT)2
Full size table
Fig. 9
figure 9

Docking result of both the PPEHCDT and its cis-Ni(PPEHCT)2 with 1BNA: (a) PPEHCDT ‘s connection site, (b) 2D-interactions of PPEHCDT, (c) cis-Ni(PPEHCDT)2’s connection site, and (d) Nucleotides medium with their H-bond interacted to cis-Ni(PPEHCDT)2

Full size image

Conclusions

A novel neutral Nickel(II) complex with two Ni(PPEHDC)2 bidentate N, S-type ligands has been prepared in a good yield. The structural formula of cis-Ni(PPEHDC)2 isomer was evidenced by XRD and further supported via EDX, IR, UV-Vis, CHN-EA, and FAB-MS analysis. X-ray diffraction reflected the cis-Ni(PPEHDC)2 complex with distorted square planar as opposed to the tetrahedral geometry revealed by the DFT theoretical analysis. The cis-Ni(PPEHDC)2 was chelated to the Ni(II) center via S-thiol and N-azomethine atoms to form a unique cis-conformation square planar. Additionally, the DFT/XRD angles and bond length values were of good consistency. The MEP, MAC/NPA, and HSA calculation results proved the XRD-experimental result in the 2D-S24 synthons formation via C-H···πPh and C-H···S interactions. The cis-Ni(PPEHDC)2 is thermally stable up to 250 oC; it decomposed to nickel oxide final product in a two-step decomposition mechanism. Moreover, investigations of 1BNA docking with the free ligand and its Ni-complex showed a dramatical shift in binding locations, H-bond quantity and type, and binding energy values.

Data availability

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.
